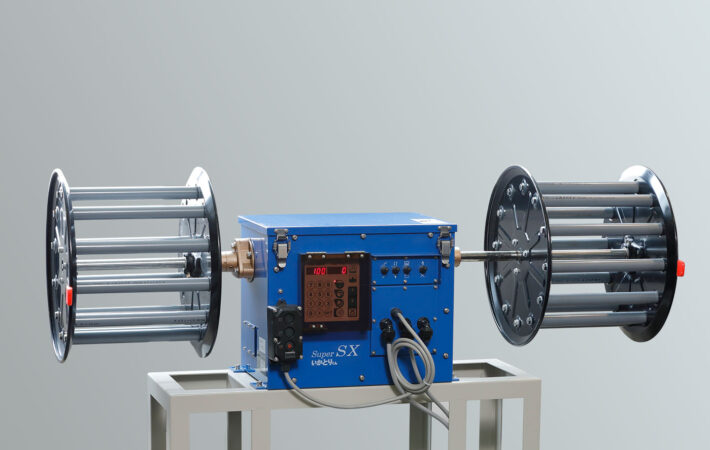

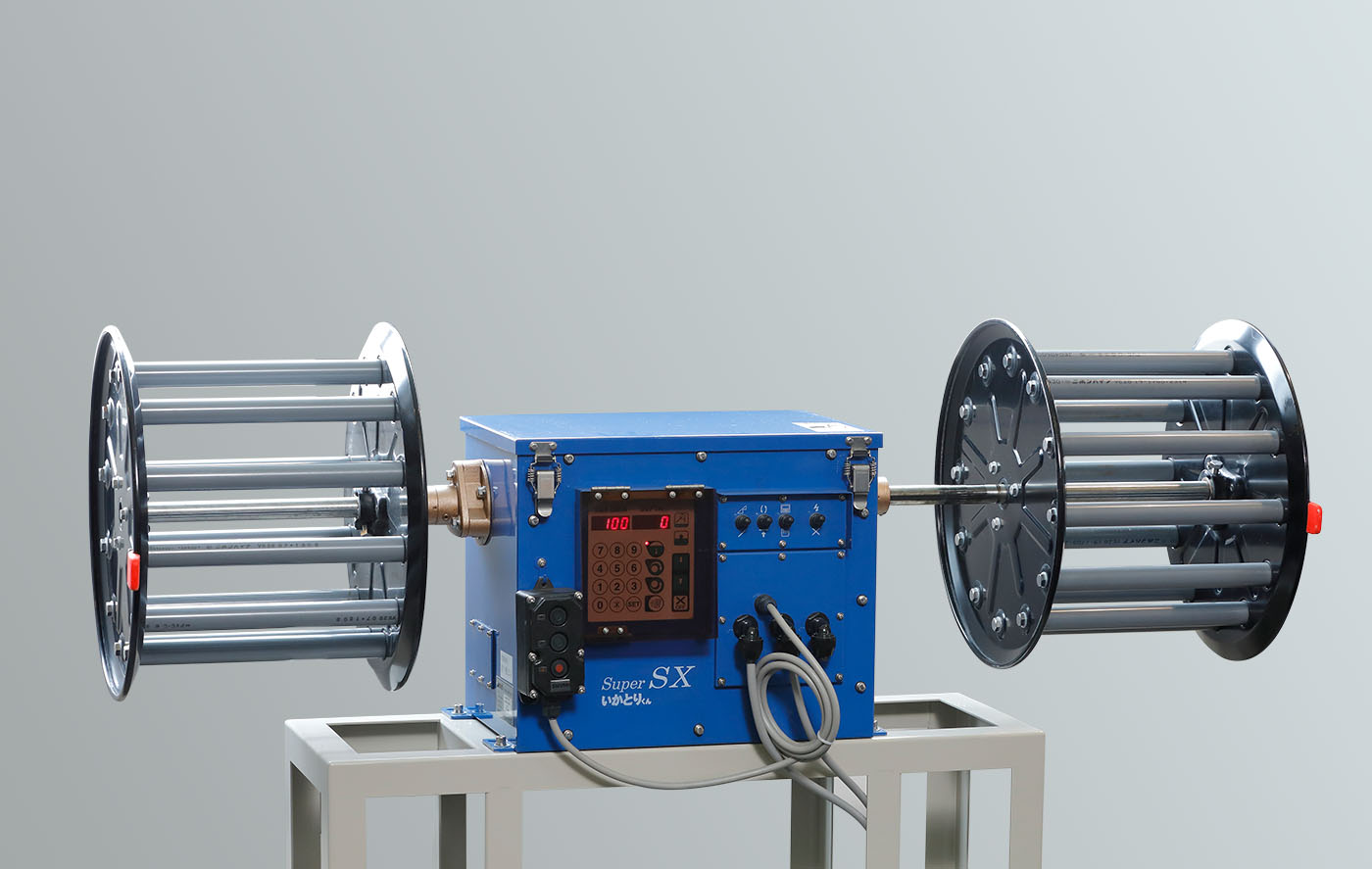

釣れるイカ釣り機SUPER-SE-SX

弊社では1974年にVC-Ⅱ型（トルクモーター）を開発して以来約半世紀間イカ釣り機を開発、製造、販売して来ました。現行機種であるSUPER-SE-SX型イカ釣り機に、今まで培っていたノウハウを全て取り込むことで簡単な操作でイカを大量に釣ることができます。モーターは産業用ロボットにも使用しているACサーボモーターを搭載し、鋭いシャクリとすべりのない動作を実現しました。スルメイカ、ヤリイカ、ケンサキイカ、ムラサキイカ、トビイカ、アカイカ、マツイカなど様々なイカに対応したイカ釣り機です。

The Super SE-SX controls and adjusts the wire tension precisely to prevent it from going slack. While hauling and stopping the wire repeatedly, its computer system monitors the changing load on the wire and adjusts its tension swiftly with its AC servo motor. The wire is kept straight and it prevents squid from getting off the hook. Its precise tension control also allows the wire to shift its speed from its high to the maximum smoothly.

• The Super SE-SX enables you to customize and optimize your jigging settings
  The round drums enable users to flexibly customize their jigging settings and types to optimize their wire and jigging operations.
• The Super SE-SX displays real-time load on the wire
  The system shows real-time wire load in three shifting colors and kilograms. It allows users to easily recognize if and when squid is caught on the hook and in what water depth.

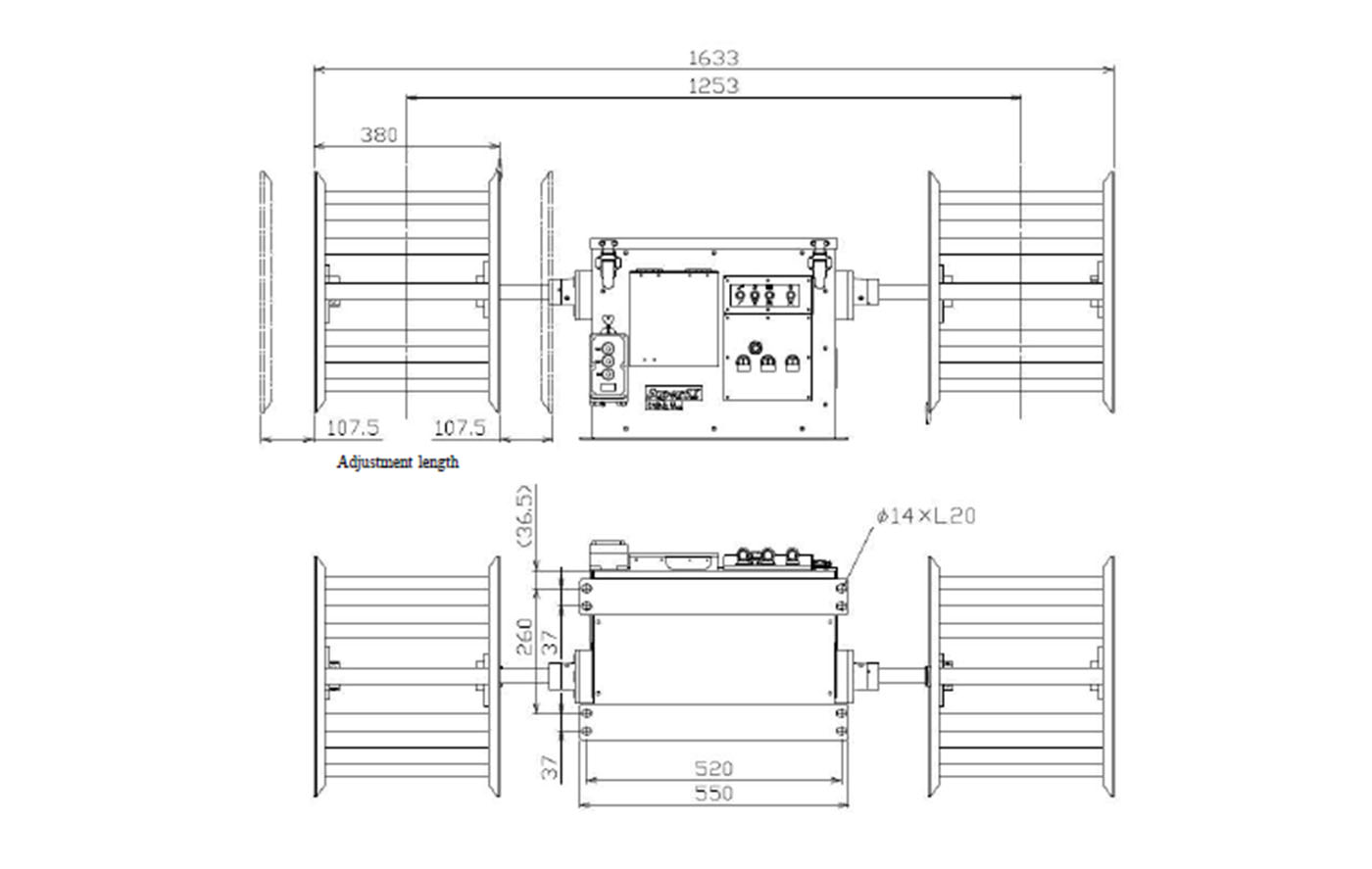

• The Super SE-SX’s drums slide sideways 215mm to avoid tangling
  The drums slide sideways 215mm, the largest distance in the industry. This prevents hooks from piling and tangling on the drums.
• The Super SE-SX keeps the wire taut with its spring tensioner
  Its spring tensioner keeps the wire straight and taut and prevents it from going slack, enabling precise jigging movements.

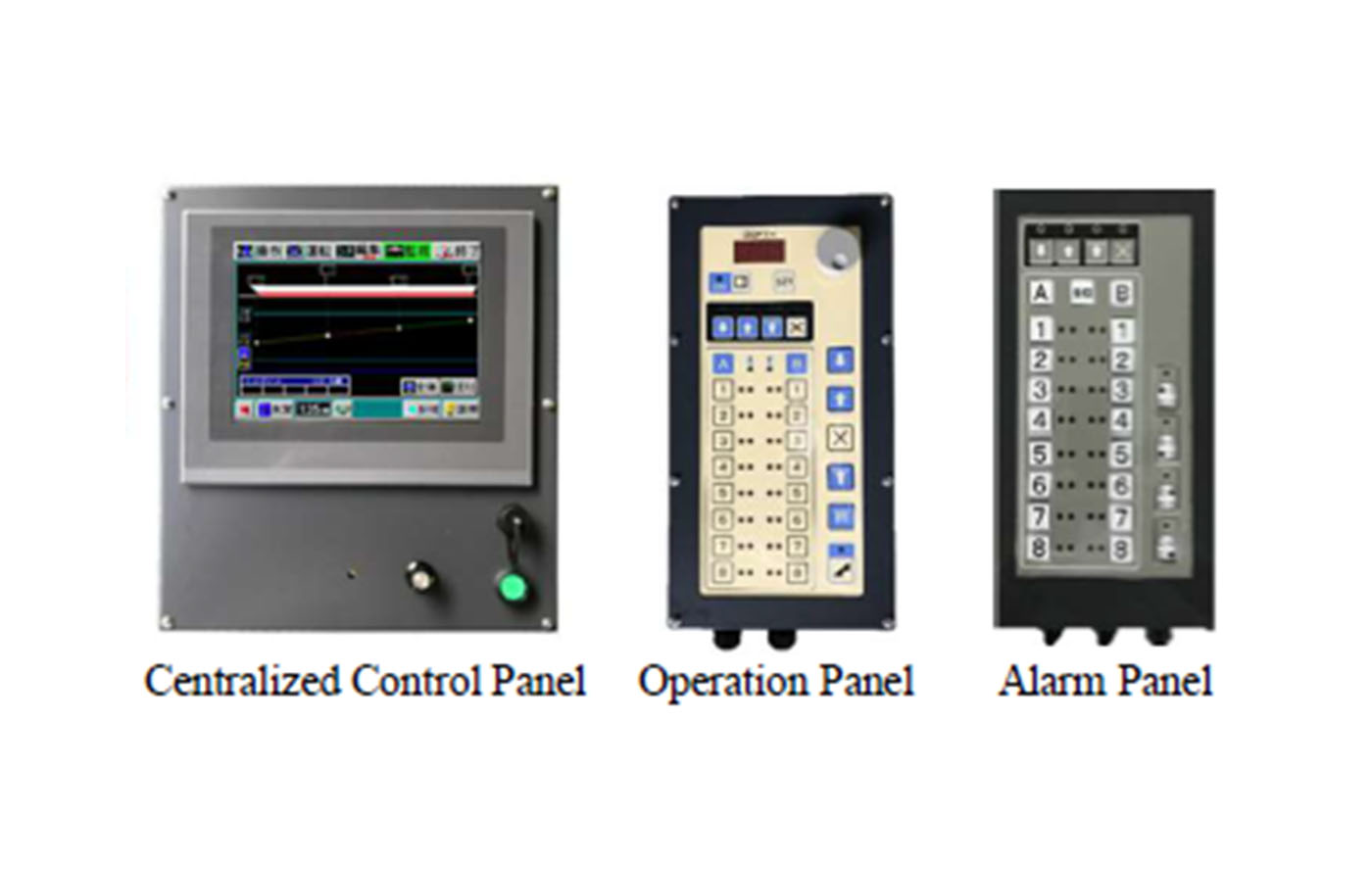

• The Super SE-SX introduces the waterproof alarm operation panel

The system introduces the industry’s first waterproof alarm operation panel. When installed in the packing area, users can monitor the wire load and other operation parameters while packing, and respond quickly to any irregularities shown on the panel.
